Showroom » Polaris Industries » Scrambler® 500 4x4
Model Quick Search

$6,399.00
$5,599.00
$800.00

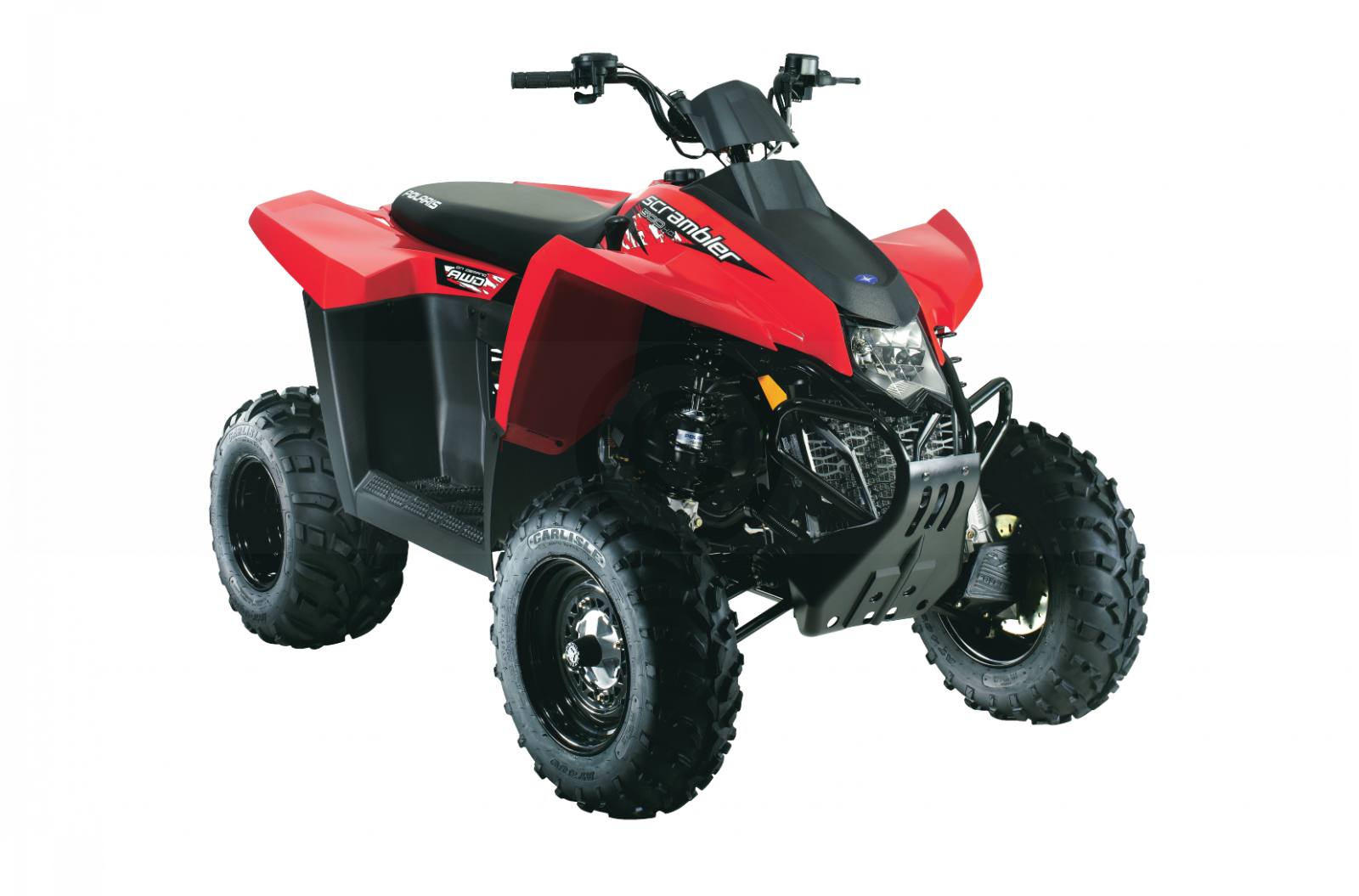

2010 Polaris Industries Scrambler® 500 4x4

Clearance Corner ATV Sale

Now until October 8, 2010
$800.00 Off MSRP
Request a Quote Financing Calculator Financing Form
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Power: 500 High-Output (H.O.) 4-valve, liquid cooled, 4-stroke engine.
  • Traction: On-Demand True All-Wheel Drive with EBS/ADC. Engages all four tires when the rear wheels slip and you need more forward traction. Reverts back to 2WD when you don't.
  • Suspension: New suspension and chassis. Easy-handling MacPherson Strut front suspension with 8.2" (20.8 cm) of travel. Progressive-rate swingarm with 10.5 in. (26.7 cm) of travel.
  • Seating and Ergonomics: New for 2010: longer, contoured seat and larger footwells for greater comfort. New sportier styling.
  • Payload: Towing Capacity: 850 lb. (385.6 kg).
  • Accessories: Add a rack, rack extenders and a cargo box to carry gear. Also available: 1,500 lb. winch, windshield, tow hitch and much more.
Engine
  • Engine Type: 4-Stroke Single Cylinder
  • Displacement (cc): 498cc
  • Fuel System: Carbureted
  • Cooling Type: Liquid
Drivetrain
  • Final Drive: Concentric chain (Rear) Shaft (Front)
  • Transmission: Automatic PVT F/N/R
  • Drive System: On-Demand True AWD/2WD
  • Engine Braking System: Accessory
Suspension
  • Front Suspension: MacPherson Strut with 8.2 in. (20.8 cm) Travel
  • Rear Suspension: Progressive-Rate Swingarm with 10.5 in. (26.7 cm) Travel
Brakes
  • Front Brake: Single Lever Hydraulic disc
  • Rear Brake: Hydraulic rear foot brake
Tires/Wheels
  • Front Tires: 23 x 8-12
  • Rear Tires: 22 x 11-10
  • Wheels: Stamped Steel
Dimensions
  • Parking Brake: Park in Transmission
  • Wheelbase: 48.5 in. (122 cm)
  • Dry Weight: 559 lb. (254 kg.)
  • Length/Width/Height: 75 in./45 in./49 in. (190.5 cm/114.3 cm/124.5 cm)
  • Seat Height: 35 in. (89 cm)
  • Ground Clearance: 4.75 in. (12.1 cm)
Capacities
  • Fuel Capacity: 4 gal. (15 ltr.)
  • Hitch Towing Rating: 850 lb. (385.6 kg.)
  • Unbraked Trailer Towing Capacity (Based on EU Directive 76/432/EC): 1,263 lb. (573 kg.)
  • Hitch / Type: Accessory
Instrumentation
  • Instrumentation: N/R Light, Fuel Gauge, Hi-Temp Light
Colors
  • Colors: Indy Red

Specifications

Engine
Engine Type 4-Stroke
Displacement 498cc
Cylinders Single
Engine Cooling Liquid
Fuel System Carbureted
Chassis
Front Suspension MacPherson Strut
Front Travel 8.2 in. (20.8 cm)
Front Brake Type Single Lever Hydraulic disc
Front Tires 23 x 8-12
Rear Travel 10.5 in. (26.7 cm)
Rear Suspension Progressive-Rate Swingarm
Rear Brake Type Hydraulic rear foot brake
Rear Tires 22 x 11-10
Dimensions/Capacities
Dry Weight 559 lb. (253.6 kg.)
Towing Capacity 1,263 lb. (572.9 kg.)
Fuel Capacity 4 gal. (15 ltr.)
Ground Clearance 4.75 in. (12.1 cm)
Machine Dimensions (LxWxH) 75 in./45 in./49 in. (190.5 cm/114.3 cm/124.5 cm)
Wheelbase 48.5 in. (122 cm)
Drive Train
Drive Train On-Demand True AWD/2WD
Final Drive Concentric chain (Rear) Shaft (Front)
Transmission Automatic PVT F/N/R
General
Colors Indy Red

Compare Models

 Print








Year 2010
Manufacturer Polaris Industries
Model Scrambler® 500 4x4
Style Off Road
MSRP* $6,399.00
Chassis
Front Suspension MacPherson Strut
Front Travel 8.2 in. (20.8 cm)
Front Brake Type Single Lever Hydraulic disc
Front Tires 23 x 8-12
Rear Suspension Progressive-Rate Swingarm
Rear Travel 10.5 in. (26.7 cm)
Rear Brake Type Hydraulic rear foot brake
Rear Tires 22 x 11-10
Frame
Dimensions/Capacities
Dry Weight 559 lb. (253.6 kg.)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity 1,263 lb. (572.9 kg.)
Fuel Capacity 4 gal. (15 ltr.)
Ground Clearance 4.75 in. (12.1 cm)
Machine Dimensions (LxWxH) 75 in./45 in./49 in. (190.5 cm/114.3 cm/124.5 cm)
Wheelbase 48.5 in. (122 cm)
Drive Train
Drive Train On-Demand True AWD/2WD
Final Drive Concentric chain (Rear) Shaft (Front)
Transmission Automatic PVT F/N/R
Engine
Engine Type 4-Stroke
Displacement 498cc
Bore x Stroke
Cylinders Single
Engine Cooling Liquid
Fuel System Carbureted
Starting System
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors Indy Red
Warranty

Current Promotions

There are currently no promotions available for this product.
